Caja de cambios de la impulsión de la ciénaga
Created with Pixso. Single Axis Slew Drive Gearbox for Vertical Mounting Solar Tracker

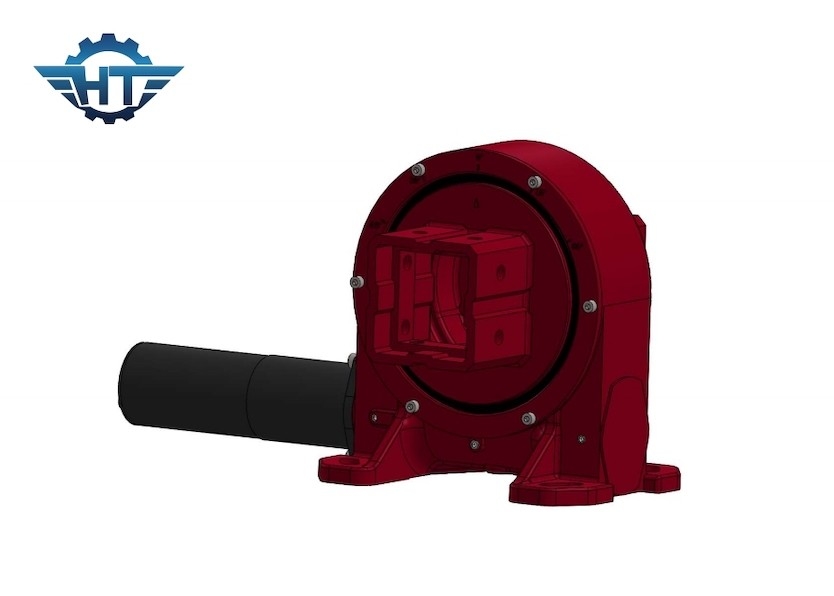

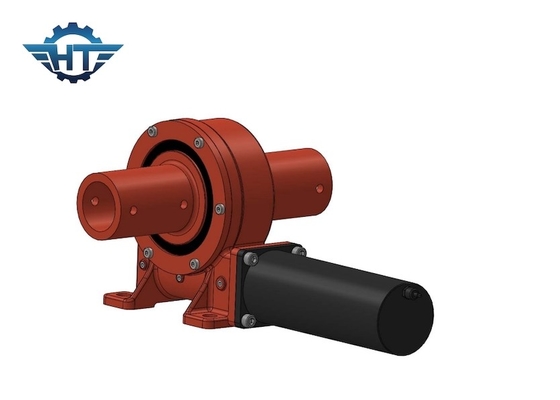

Single Axis Slew Drive Gearbox for Vertical Mounting Solar Tracker

Información detallada
Static Radial Load:
100 kN
Ratio:
62:1
Maximum Output Torque:
10000 Nm
Static Axial Load:
200 kN
Slewing Speed:
0.2 rpm
Dynamic Axial Load:
100 kN
Tilting Moment Torque:
20000 Nm
Dynamic Radial Load:
50 kN
Resaltar:

solar tracker Slew Drive Gearbox

,

vertical mounted Slew Drive Gearbox

,

solar tracker Slew Drive Gearbox vertical mounted

Descripción del producto
Product Description: The Worm Slew Drive Gearbox is engineered to withstand static axial load of up to 200 kN, making it a robust and durable choice for heavy-duty applications. Additionally, it boasts an impressive static radial load capacity of 100 kN, ensuring smooth and efficient operation even in the toughest environments. Our Worm Slew Drive Gearbox is built with high-quality materials and features a protection level of IP66, providing outstanding resistance against
